Stainless steel cable Ties-L Type Uncoated Ties

Stainless steel cable Ties-L Type Uncoated Ties Featured Image
  • Stainless steel cable Ties-L Type Uncoated Ties

short description:

◆ Product material: 201 material, 304 material, 316 material
◆ Applicable tools: C001, LQA, C075, J020, CT04, G402
◆ Working temperature: white steel -80°C~538°C
◆ length: 300 the above


Product Detail

FAQ

Product Tags

The operation video

Wenzhou Darren Electric Co., Ltd.

A professional manufacturer. For many years, the company has focused on the research of strapping technology, specializing in the production of various styles of stainless steel cable ties and supporting products

l-shaped stainless steel cable tie

1.l-shaped stainless steel cable tie are available in a variety of widths, thicknesses, and lengths. They can be made. They are suitable for projects with fixed length cable ties, which can save on-site installation time and improve work efficiency.
2.The special coating series have excellent weather resistance and oxidation resistance, and provide good insulation and protection for the wire.
3.It can provide binding strengths of different strengths to meet various actual binding needs of customers.

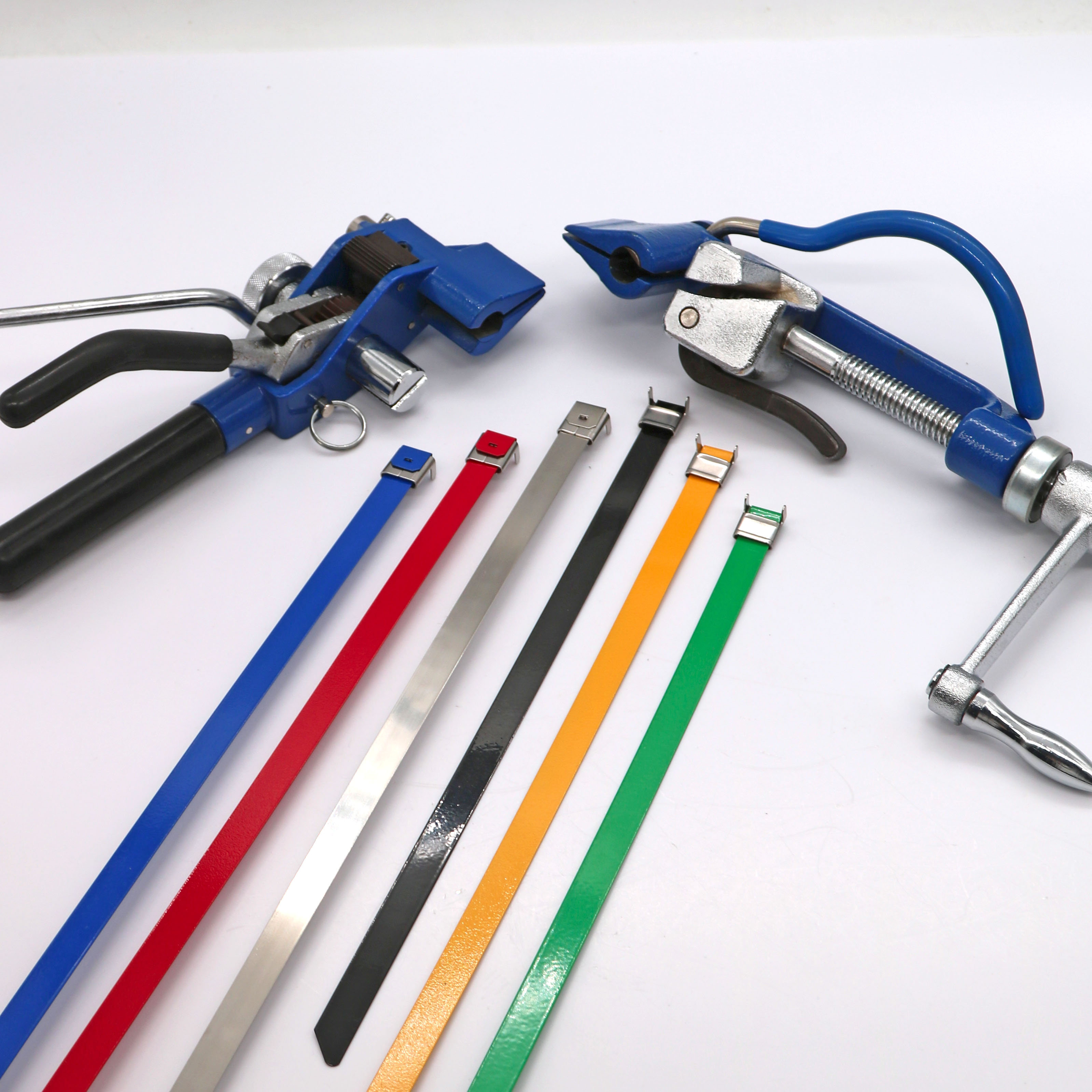

IMG_4179

Technical Parameter
◆ Product name: Stainless steel cable Ties-L Type Uncoated Ties
◆ Product material: 201 material, 304 material, 316 material
◆ Applicable tools: C001, LQA, C075, J020, CT04, G402
◆ Working temperature: white steel -80°C~538°C
◆ length: 300 the above
◆ Product features: The design of the L-shaped buckle increases the endurance of the pulling force of the buckle on the steel belt, and binds objects firmly
Advantage
The design of the L-shaped buckle increases the endurance of the pulling force of the buckle on the steel belt and binds objects firmly.
Product Specifications

width/mm

6.4

7.9

10

12

16

19

Baseband thickness/mm

0.25/0.3/0.4

0.25/0.3

0.25/0.3/0.4

0.25/0.3/0.4

0.3/0.4/0.5

0.3/0.4/0.5

Applicable tools

J020    CT04

J020    CT04

J020     C075    CT04

LQA       C075     C001

LQA

C075

C001

LQA

C075

C001

8 Model (1)_00
Product use operation
4-1c
Detailed parameters

 Item No. width length thickness Maximum bundle diameter Minimum bundle diameter Minimum pull Recommended Installation tools
   mm   inch    mm inch mm inch mm inch mm inch N IBS
LP-6.4*200 6.4 0.25 200 7.87 0.25
0.3
0.4		 0.01
0.01
0.02		 55 2.17 12.7 0.50 2100 466 J020
CT04
LP-6.4*300 300 11.81 90 3.54
LP-6.4*400 400 15.75 120 4.72
LP-6.4*500 500 19.69 150 5.91
LP-6.4*600 600 23.62 185 7.28
LP-6.4*800 800 31.5 250 9.84
LP-6.4*900 900 35.43 270 10.63
LP-6.4*1000 1000 39.37 302 11.89
LP-7.9*200 7.9 0.31 200 7.87 0.25
0.3		 0.01
0.01		 55 2.17 19.05 0.75 2200 488 J020
CT04
LP-7.9*300 300 11.81 90 3.54
LP-7.9*400 400 15.75 120 4.72
LP-7.9*500 500 19.69 150 5.91
LP-7.9*600 600 23.62 185 7.28
LP-7.9*800 800 31.5 250 9.84
LP-7.9*900 900 35.43 270 10.63
LP-7.9*1000 1000 39.37 302 11.89
LP-10*500 10 0.39 500 19.69 0.25
0.3
0.4		 0.01
0.01
0.02		 143 5.63 25.4 1.00 2300 510 J020
C075
CT04
LP-10*700 700 27.56 207 8.15
LP-10*900 900 35.43 270 10.63
LP-10*1100 1100 43.31 334 13.15
LP-10*1300 1300 51.18 398 15.67
LP-10*1500 1500 59.06 461 18.15
LP-10*1700 1700 66.93 525 20.67
LP-10*1900 1900 74.80 589 23.19
LP-10*500 12 0.47 500 19.69 0.25
0.3
0.4		 0.01
0.01
0.02		 143 5.63 25.4 1.00 2900 643 LQA
C075
C001
LP-10*700 700 27.56 207 8.15
LP-10*900 900 35.43 270 10.63
LP-10*1100 1100 43.31 334 13.15
LP-10*1300 1300 51.18 398 15.67
LP-10*1500 1500 59.06 461 18.15
LP-10*1700 1700 66.93 525 20.67
LP-10*1900 1900 74.80 589 23.19
LP-10*500 16 0.63 500 19.69 0.3
0.4
0.5		 0.02
0.02
0.02		 143 5.63 25.4 1.00 3400 754 LQA
C075
C001
LP-10*700 700 27.56 207 8.15
LP-10*900 900 35.43 270 10.63
LP-10*1100 1100 43.31 334 13.15
LP-10*1300 1300 51.18 398 15.67
LP-10*1500 1500 59.06 461 18.15
LP-10*1700 1700 66.93 525 20.67
LP-10*1900 1900 74.80 589 23.19
LP-19*700 19 0.75 700 27.56 0.3
0.4
0.5		 0.02
0.02
0.02		 207 8.15 25.4 1.00 4100 920 LQA
C075
C001
LP-19*900 900 35.43 270 10.63
LP-19*1100 1100 43.31 334 13.15
LP-19*1300 1300 51.18 398 15.67
LP-19*1500 1500 59.06 461 18.15
LP-19*1700 1700 66.93 525 20.67
LP-19*1900 1900 74.80 589 23.19
LP-19*2100 2100 82.68 652 25.67
LP-25*900 25 0.98 900 35.43 0.4
0.5		 0.02
0.02		 270 10.63 25.4 1.00 LQA
C075
C001
LP-25*1100 1100 43.31 334 13.15
LP-25*1300 1300 51.18 398 15.67
LP-25*1500 1500 59.06 461 18.15
LP-25*1700 1700 66.93 525 20.67
LP-25*1900 1900 74.80 589 23.19
LP-25*2100 2100 82.68 652 25.67
LP-25*2300 2300 90.55 780 30.7
LP-32*900 32 1.25 400 35.43 0.4
0.5		 0.02
0.02		 270 10.63 25.4 1.00 LQA
C075
C001
LP-32*1100 500 43.31 334 13.15
LP-32*1300 600 51.18 398 15.67
LP-32*1500 700 59.06 461 18.15
LP-32*1700 800 66.93 525 20.67
LP-32*1900 900 74.80 589 23.19
LP-32*2100 1000 82.68 652 25.67
LP-32*2300 1100 90.55 780 30.7
