Woolf Teeth Type Buckles tie band

Woolf Teeth Type Buckles tie band Featured Image
  • Woolf Teeth Type Buckles tie band

short description:

◆ Product material: 201 material, 304 material, 316 material
◆ Applicable tools: C001, LQA, C075, J020, CT04, G402
◆ Working temperature: white steel -80°C~538°C
◆ length: 300 the above


Product Detail

FAQ

Product Tags

The operation video

Wenzhou Darren Electric Co., Ltd.

A professional manufacturer. For many years, the company has focused on the research of strapping technology, specializing in the production of various styles of stainless steel cable ties and supporting products.

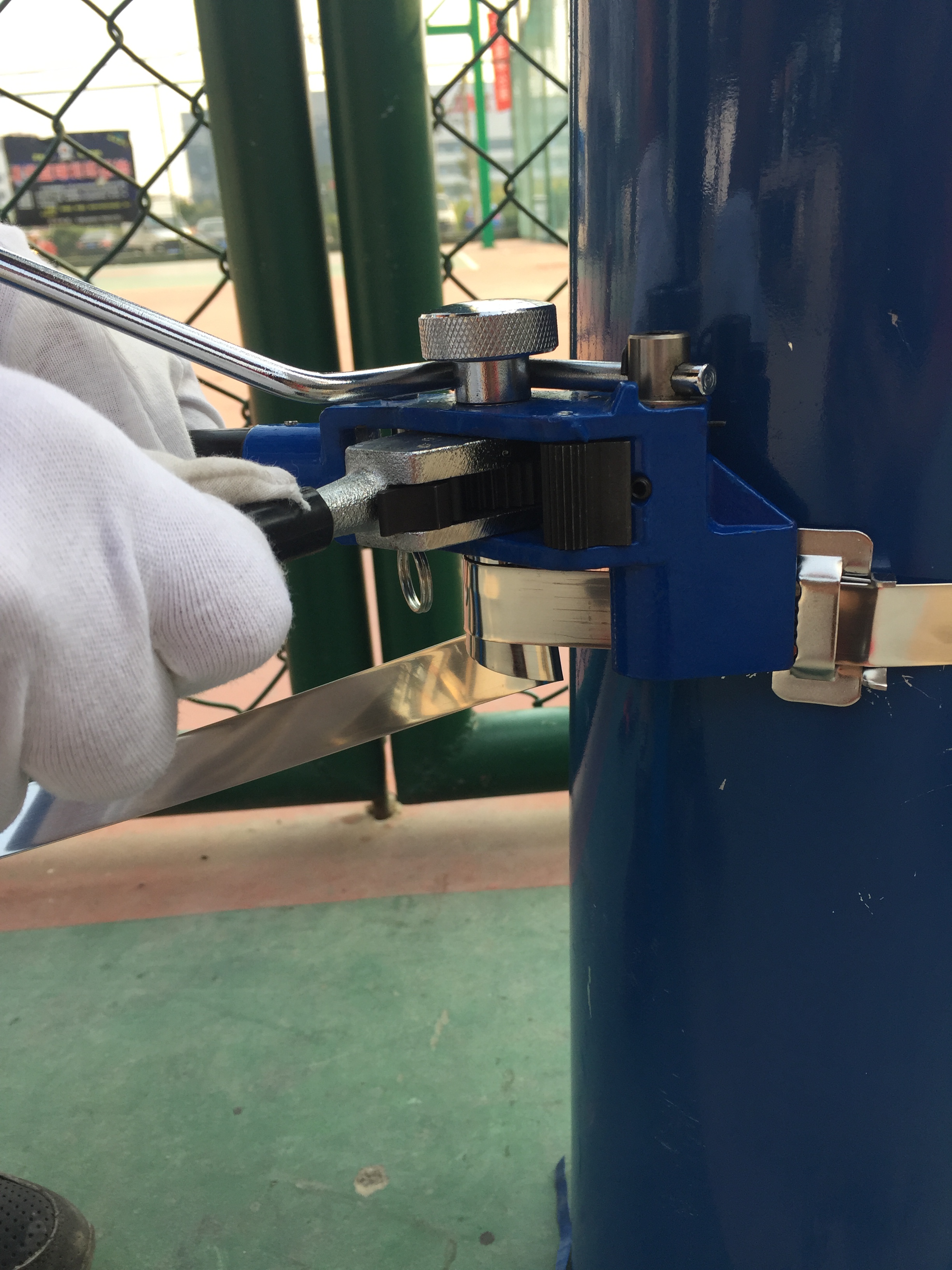

D (2)

Technical Parameter
◆ Product material: 201 material, 304 material, 316 material
◆ Applicable tools: C001, LQA, C075, J020, CT04, G402
◆ Working temperature: white steel -80°C~538°C
◆ length: 300 the above
◆ Product features: the design of tooth-shaped buckle increases the endurance of the pulling force of the buckle on the steel belt, and binds objects firmly
Advantage
The design of the tooth-shaped buckle increases the endurance of the pulling force of the buckle on the steel belt, and binds objects firmly.
Product Specifications

width/mm

6.4

10

12.7

16

19

25

32

Baseband thickness/mm

0.4

0.4

0.7-1.0

0.7-1.0

0.7-1.0

1

1

Applicable tools

J020   CT04

J020    C075   CT04

LQA     C075    C001

LQA     C075    C001

LQA     C075    C001

G402

G402

7 Model (1)_00
Product use operation
3-1c
Detailed parameters

Item No width length thickness Maximum bundle diameter Minimum bundle diameter Minimum pull Recommended Installation tools
   mm   inch    mm inch mm inch mm inch mm inch N IBS
CX-6.4*500 6.4 0.25 500 19.69 0.4
0.5
0.6		 0.02 143 5.63 12.7 0.50 2800 621 J020
CT04
CX-6.4*600 600 23.62 175 6.89
CX-6.4*700 700 27.56 207 8.15
CX-6.4*800 800 31.5 238 9.37
CX-6.4*1000 1000 39.37 270 10.63
CX-6.4*1100 1100 43.3 300 11.81
CX-6.4*1200 1200 42.24 330 12.99
CX-6.4*1500 1500 59.05 410 16.14
CX-6.4*2000 2000 78.74 570 22.44
CX-10*500 10 0.37 500 19.69 0.4
0.5
0.7		 0.02
0.02
0.03		 143 5.63 19.05 0.75 4400 976 J020
CT04
C075
CX-10*600 600 23.62 175 6.89
CX-10*700 700 27.56 207 8.15
CX-10*800 800 31.5 238 9.37
CX-10*1000 1000 39.37 270 10.63
CX-10*1100 1100 43.3 300 11.81
CX-10*1200 1200 42.24 330 12.99
CX-10*1500 1500 59.05 410 16.14
CX-10*2000 2000 78.74 570 22.44
CX-12.7*500 12.7 0.49 500 19.69 0.7
0.76
1.0		 0.03
0.03
0.04		 143 5.63 25.4 1.00 8100 1798 LQA
C075
CT04
CX-12.7*600 600 23.62 175 6.89
CX-12.7*700 700 27.56 207 8.15
CX-12.7*800 800 31.5 238 9.37
CX-12.7*1000 1000 39.37 270 10.63
CX-12.7*1100 1100 43.3 300 11.81
CX-12.7*1200 1200 42.24 330 12.99
CX-12.7*1500 1500 59.05 410 16.14
CX-12.7*2000 2000 78.74 570 22.44
CX-16*500 16 0.63 500 19.69 0.7
0.76
1.0		 0.03
0.03
0.04		 143 5.63 25.4 1.00 9200 2042 LQA
C075
C001
CX-16*600 600 23.62 175 6.89
CX-16*700 700 27.56 207 8.15
CX-16*800 800 31.5 238 9.37
CX-16*1000 1000 39.37 270 10.63
CX-16*1100 1100 43.3 300 11.81
CX-16*1200 1200 42.24 330 12.999
CX-16*1500 1500 59.05 410 16.14
CX-16*2000 2000 78.74 570 22.44
CX-19*500 19 0.74 500 19.69 0.7
0.76
1.0		 0.03
0.03
0.04		 143 5.63 25.4 1.00 10694 2374 LQA
C075
C001
CX-19*600 600 23.62 175 6.89
CX-19*700 700 27.56 207 8.15
CX-19*800 800 31.5 238 9.37
CX-19*1000 1000 39.37 270 10.63
CX-19*1100 1100 43.3 300 11.81
CX-19*1200 1200 42.24 330 12.99
CX-19*1500 1500 59.05 410 16.1
CX-19*2000 2000 78.74 570 22.44
CX-19*2500 2500 98.4 730 28.74
CX-25*500 25 0.98 500 19.69 0.7
0.76
1.0		 0.03
0.03
0.04		 143 5.63 25.4 1.00 G402
CX-25*600 600 23.62 175 6.89
CX-25*700 700 27.56 207 8.15
CX-25*800 800 31.5 238 9.37
CX-25*1000 1000 39.37 270 10.63
CX-25*1100 1100 43.3 300 11.81
CX-25*1200 1200 42.24 330 12.99
CX-25*1500 1500 59.05 410 16.1
CX-25*2000 2000 78.74 570 22.44
CX-25*2500 2500 98.4 730 28.74
CX-32*500 32 1.26 500 19.69 0.7
0.76
1.0
1.1		 0.03
0.03
0.04
0.04		 143 5.63 25.4 1.00 G402
CX-32*600 600 23.62 175 6.89
CX-32*700 700 27.56 207 8.15
CX-32*800 800 31.5 238 9.37
CX-32*1000 1000 39.37 270 10.63
CX-32*1100 1100 43.3 300 11.81
CX-32*1200 1200 42.24 330 12.99
CX-32*1500 1500 59.05 410 16.1
CX-32*2000 2000 78.74 570 22.44
CX-32*2500 2500 98.4 730 28.74
